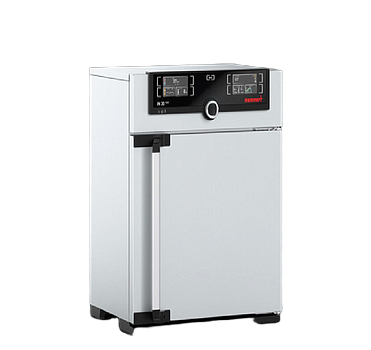

Memmert IF110mplus Incubator Im

Volume: 108 liters

Interrior dimensions: 560W x 480H x 400D mm

Exterior dimensions: 745W x 864H x 584D mm

Stainless steel grids: 2

Max. number of grids: 5

Max. loading per grid: 20 kg

Max. loading of chamber: 175 kg

Working temperature range: min. 10 above ambient temperature to 80°C

Setting accuracy: 0.1°C

Forced convection

Two high-resolution TFT colour displays with touch-sensitive buttons for selection of functions.

Available parameters on the ControlCOCKPIT: temperature (Celsius or Fahrenheit), exhaust air flap position, programme time

Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

ControlCOCKPIT with USB port for uploading programmes, reading out protocol logs, activating the User-ID function

Displaying of already logged protocol data on the ControlCOCKPIT (max 10000 values correspond to approx. 1 week)

Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging

Multiple overtemperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.1) and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual MIN / MAX values for over/undertemperature alarm and also for all other parameters

PID microprocessor control with integrated auto-diagnostic system

Structured stainless steel housing, scratch-resistant, robust and durable; rear of zinc-plated steel

Internal data logger with a storage capacity of at least 10 years

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Timer: digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function setpointWAIT: the process time does not start until the set temperature is reached

Calibration: three freely selectable values each

Programme stored in case of power failure

Autodiagnostic system for fault analysis

Door: fully insulated stainless steel door with 2-point locking, inner glass door.

Ambient temperature: 5 – 40°C

Humidity: max. 80% rh, non-condensing

Voltage: 230 V, 50/60 Hz

Electrical load: 1400 W

Accessories:

+ Works calibration certificate at 37°C (Memmert supply)

+ Stainless steel grid, 2 pcs

+ Manual
