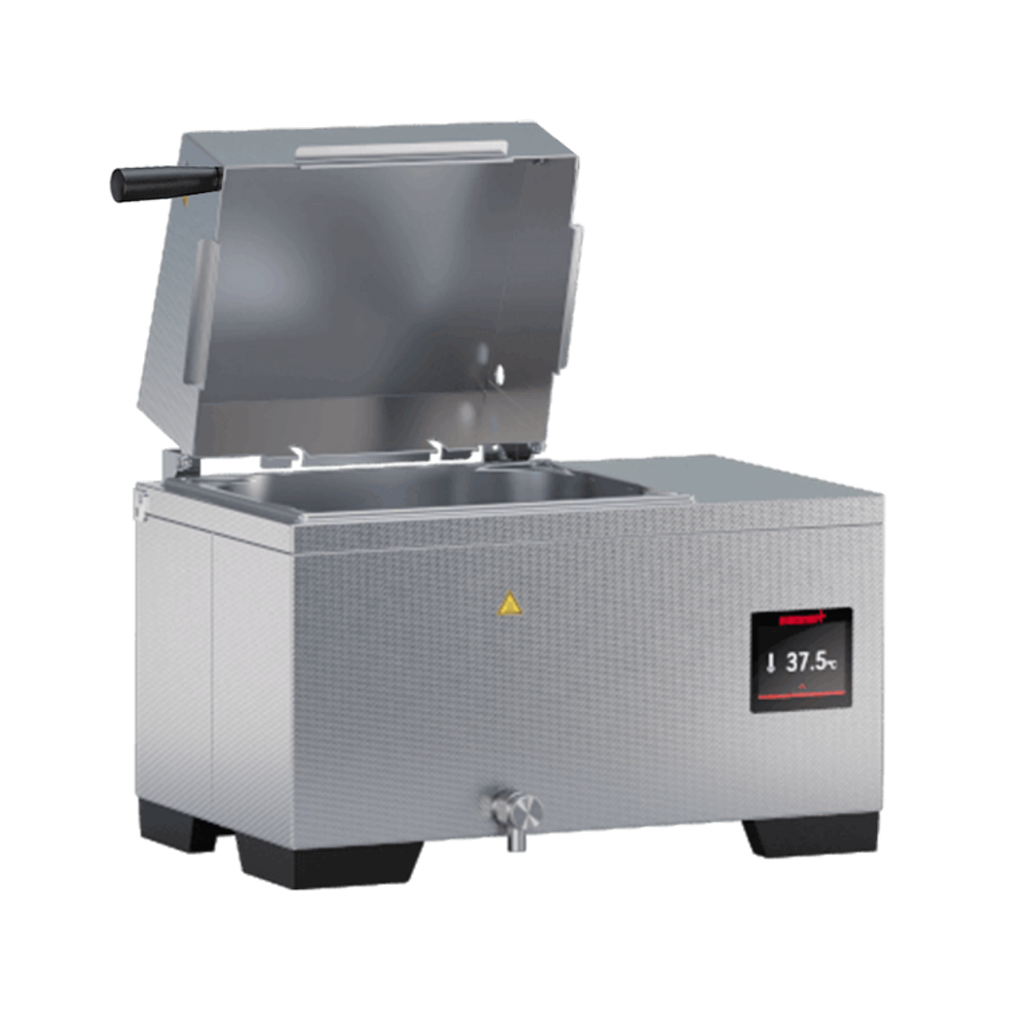

MEMMERT WTB6 水浴装置 (+10 ~ +100 °C, 7.5L)

Temperature

Temperature sensor: digital temperature sensor, mounted on the outside of the bath

Temperature: Setting Celsius / Fahrenheit

Working temperature range: at least 5 above ambient to +100 (with cover, depending on ambient pressure)

Setting temperature range: +10 to +100 °C

Setting accuracy temperature: 0.1 °C

Control technology

Calibration: 2-point calibration

Controller: intuitive 3.5" colour graphic display with touch screen

Controller: digital display of set and actual temperature and of (remaining) programme time

Standard equipment

Cover: Stainless steel gable cover

Drain system: innovative drain system - easy to empty

Timer: digital timer from 1 min. up to 99 hours 59 min., visual and acoustic

Stainless steel interior

Interior: Deep-drawn stainless steel tray (stainless steel W.St. 1-4301), without corners and edges for easy cleaning incl. central drain (no disturbing installations)

Dimensions: L(A) x W(B) x H(C): 277 x 217 x 150 mm

Volume: 7.5 l

Liquid level min.: 40 mm

Liquid level max.: 114 mm

Textured stainless steel casing

Dimensions: L(D) x W(E) x H(F2): 479 x 289 x 375 mm

Electrical data

Voltage: 230 V, 50/60 Hz

Electrical load: approx. 1000 W

Ambient conditions

Ambient temperature: +5 °C to +40 °C

Humidity rh: max. 80 %, non-condensing
